JTS1
Max Load：60 KG
Length Range：400 ≤ L ≤ 6000 mm
Carrying Medium： Toothed belts or Neylon Strip
JTS2
Max Load：1500 KG
Length Range：1000 ≤ L ≤ 12000 mm
Carrying Medium： Accumulation Chain
JTS4
Max Load：2000KG
Length Range：1200 ≤ L ≤ 20000 mm
Carrying Medium： Accumulation Chian
.jpg)
JTS5
Max Load：3000 KG
Length Range：1000 ≤ L ≤ 6000mm
Drive Medium： Chain or Bevel Gear
Carrying Medium： Roller
%20%E6%8B%B7%E8%B4%9D.jpg)
90° Turn Unit
Max Load：60 KG
Drive Mode： Direct or Indirect
Carrying Medium： Belt
%20%E6%8B%B7%E8%B4%9D.jpg)

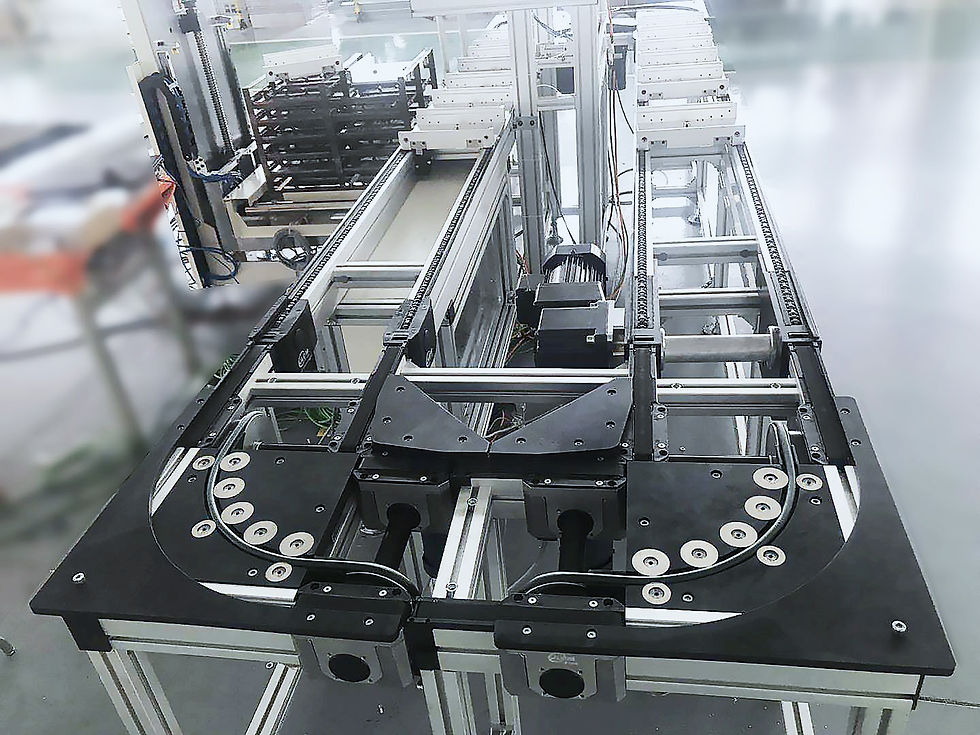

180° Turn Unit
Max Load：60KG
Drive mode：Direct or Indirect
Carrying Medium：Belt
Lift & Traverse Unit
Load Range：30~400KG
Method： Pneumatic Cylinder
Carrying Medium： Belt, Chain
Lift Unit
Load Range：30~400 KG
Method： Pneumatic Cylinder
Carrying Medium：Belt, Chain
Turntable
Max Load：30~600 KG
Method： Pneumatic Cylinder or Electrical
Carrying Medium：Roller
Pallet
Feature:：Anti-static
Plate:：Aluminum or Steel
L & W ：160 - 640 mm
Treatment:：Natural Oxidation or Black Electro Phoresies
Lift & Position Unit
Max Load：200 KG
Method： Pneumatic Cylinder
Unit Size：Based on pallet layout
Stopper
Method： Pneumatic
Loading capacity：60~160KG （when pallet moving at 6m/min）
Pallet Conveyor Series
The pallet conveyor system consists of a series of conveyor elements and components that work together to facilitate the movement of pallets along a predefined path. At INFACCOON Industries, the pallet conveying system is divided into JTS1, JTS2, JTS4, and JTS5 series according to the maximum loading capacity of a single pallet. In each series, a standardized line body and highly modular supporting mechanism are used, which can be conveniently combined for various occasions and industries to meet different automatic production requirements.
